Product:

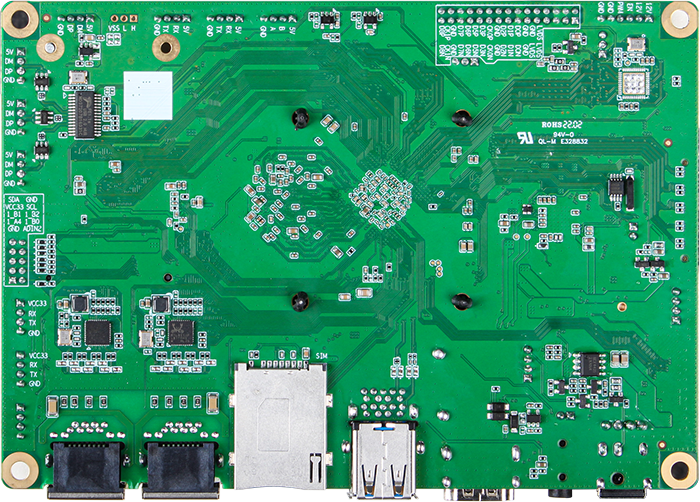

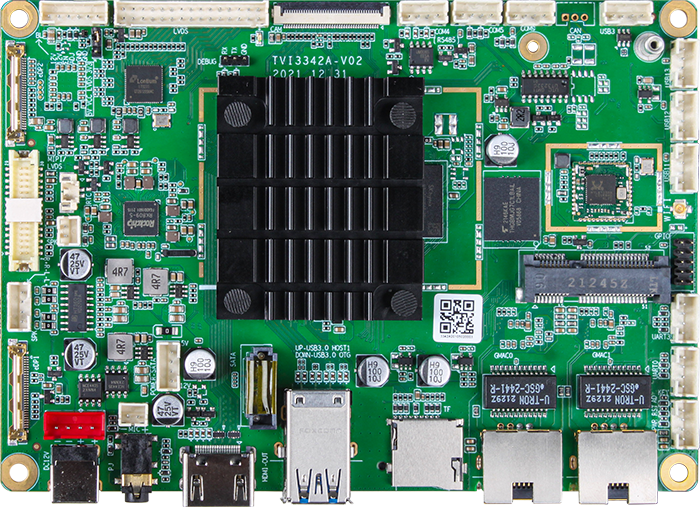

TVI3342A RK3568 3.5" SBC
TVI3342A RK3568 3.5
TVI3342A RK3568 3.5
TVI3342A RK3568 3.5

Product Introduction:

3.5-inch single-board computer

uses Rockchip Quad-core A55 high-performance CPU (RK3568)

It can be used Advertising Form Factors,Image Identification, AI, Vehicle holding computer and other Industries.

Name
Telephone
E-mail
Content
PRODUCTS NAME
CompanyUrl
TVI3342A RK3568 3.5" SBC
  • Description
  • Specification

For Further Cooperation,Please Contact Our Business Team First : sales@techvision.com.cn


- High performance Rockchip RK3568 3.5-inch SBC,

Mali-G52 GPU;

-Max 4GB LPDDR4 & 16GB eMMC onboard;

-Support 2 xeDP, LVDS & HDMI display;

-Support 3 independent displays;

-Support NPU 0.8T;

-Support 2.4G/5G Wi-Fi, 3G/LTE & Ethernet connectivity;


Why Choose Us

Techvision has accumulated rich experience in the SBC design and production. With qualified global certifications, professional software & hardware R&D team, we can provide tailor-made or customized solutions in both hardware design and software function expansion for customers.



TVI3342A RK3568 3.5

TVI3342A RK3568 3.5






Platform

CPU

ARM Cortex A55, RK3568

Cores

Quad core

Frequency

2.0 GHz



Memory

Capacity

2GB,max8GB

Type

LPDDR4



GPU

Controller

Mali G52

Frequency

800MHz

NPU

NPU

0.8T, INT8/INT16



Storage

Capacity

16GB

Type

eMMC







Display

eDP

Support



LVDS

1920*1080 dual channel

HDMI

4K*2K@60Hz, 1080P@120Hz, HDMI2.0a

Multiple Display

3 independent displays



Camera

MIPI

mipi_CSI













Connectivity

WIFI

802.11 b/g/n, 2.4G/5G(option)

Bluetooth

BT-V4.0 BLE

3G/LTE

by module choice

Ethernet

2XRJ45, 100/1000M

Audio

I2S

1 Mic_in/Line_outsoundbar5W*2

Monitor

Watchdog

Yes













I/O Ports

PCIE

Mini_PCIe

SIM

SIM Slot

HDMI

1*HDMI2.0a

eDP

2

LVDS

1

COM

2*RS232, 1*RS485,1*Debug

TF Card

Up to 128 GB

Storage

1*SATA3.0 Port

CAN

1

GPIO

7*GPIO, I2C, ADC

USB

4*USB2.0,  2*USB3.0including USB_OTG

Power Supply

DC input

DC 12V/2A, (1*4pin Wafer co-lay)





Environment

Operating Temp.

0~ 45

Storage Temp.

-10~65

Relative

Humidity



95%



OS

Debian

10

Android

11



PCBA

Technology

3.5” SBC

Dimension

146mm * 102 mm
